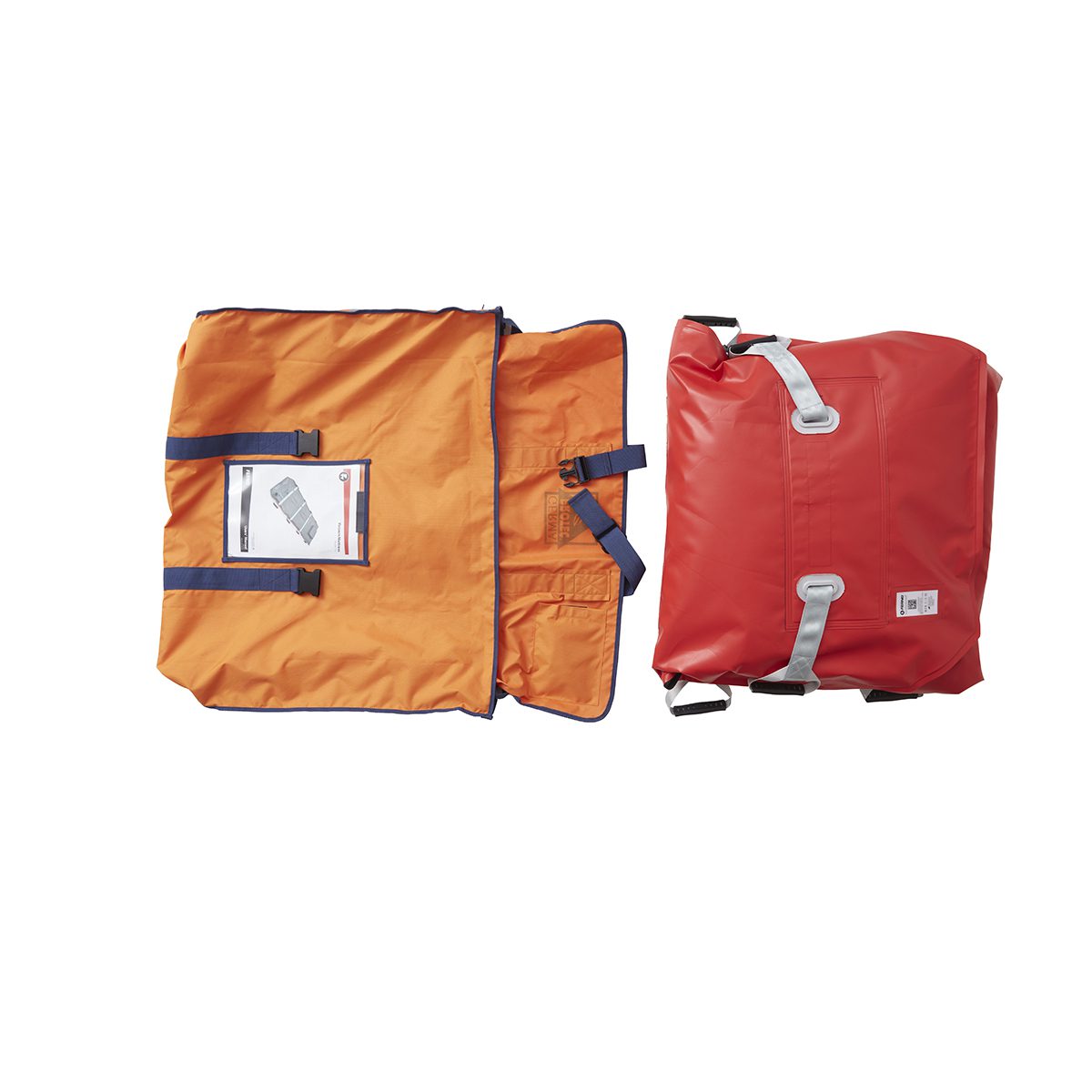

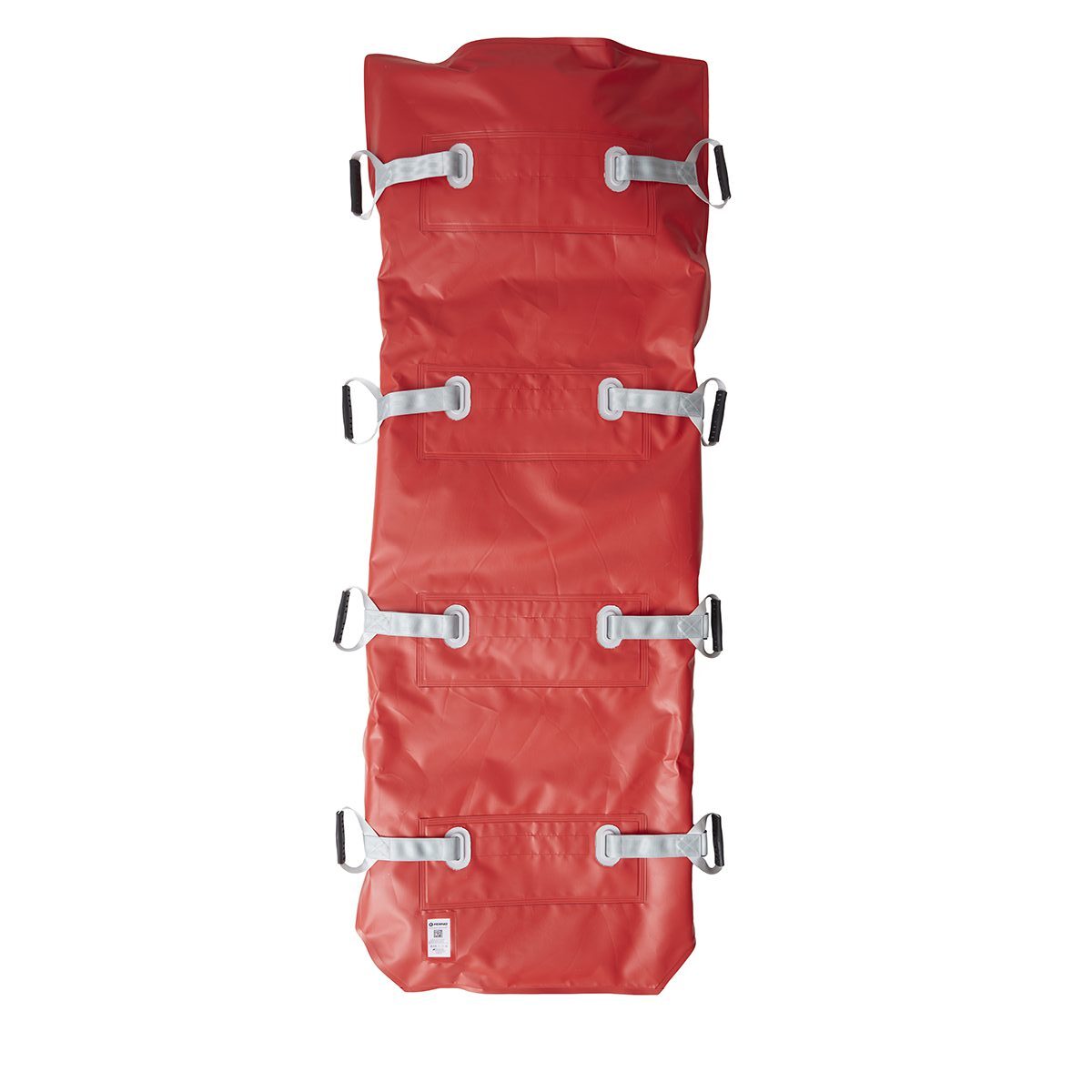

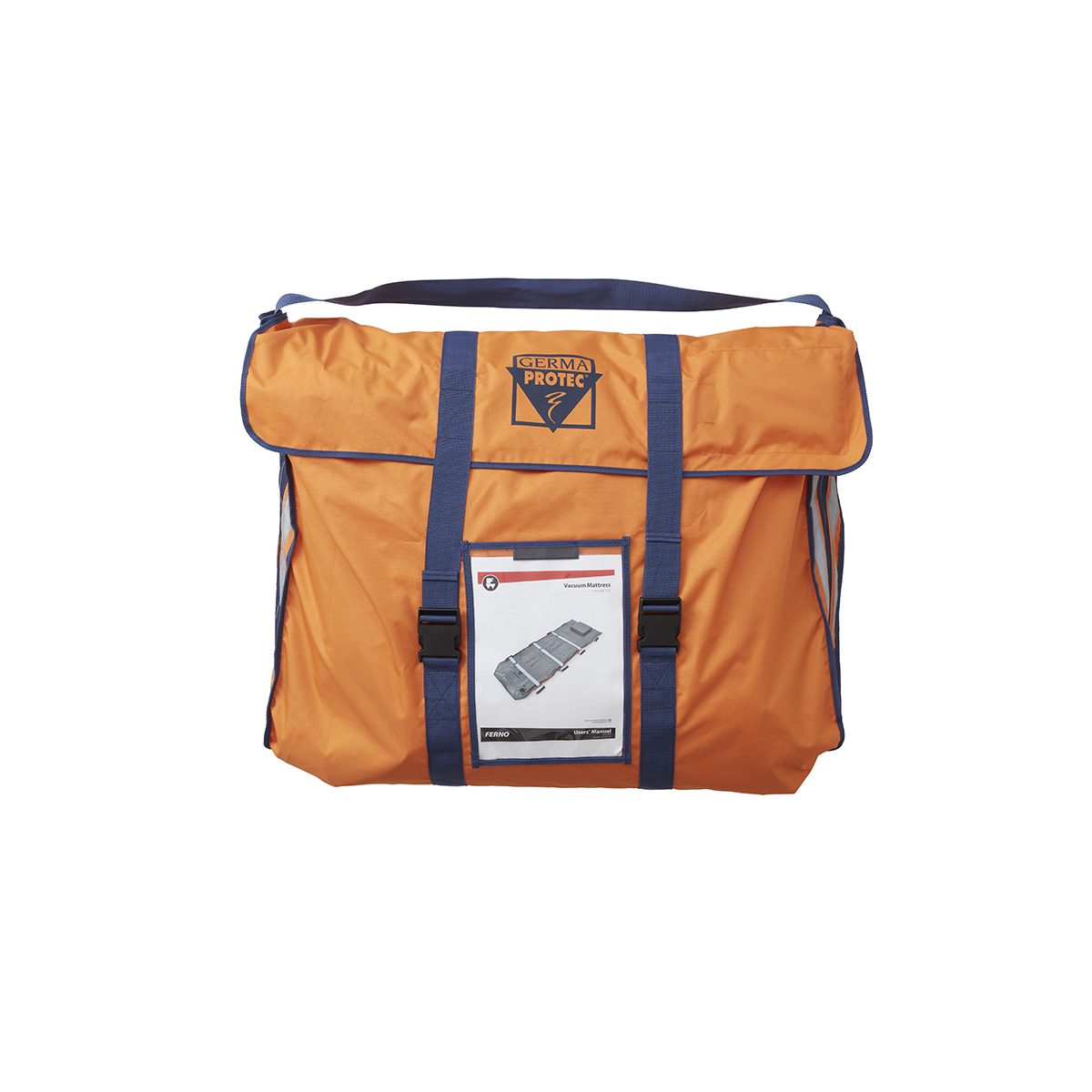

Vacuum Mattress Model 192
When immobilisation is required, the mattress is quick to prepare thanks to Germa’s unique inner chamber system, making it ready to use after minimal setup for premium immobilisation.
Equipped with 8 ergonomic handles for comfortable carrying and four restraints across the mattress to secure the patient. Approved according to European Standard EN 1865.
MDR 2017/745 Class 1 Medical device.
Product information
- 4 handles on each side – carry capacity 200 kg
- Improved chamber system
- Includes removable, contoured pillow
- Warranty period: 2 years
Material
- Outer material: PVC-coated polyester fibre, flame retardant
- Inner bag: Polyester
- Granules: Polystyrene granules (flame retardant)
Technical specifications
- Length: 210 cm
- Width: 80 cm
- Height: 5 cm
- Weight: 9 kg
- Load capacity: 200 kg
Test specifications
- Maximum shrinkage on length: 1%
- Maximum shrinkage on width: 3%
- Working temperature: -30°C to +70°C
Order information
- Art no: 271404000 – Vacuum Mattress Model AS 192
Spare parts
- Art no: 12633800000 – Germa vacuum valve Black
- Art no: 15000000111 – Repair Kit Mattresses
