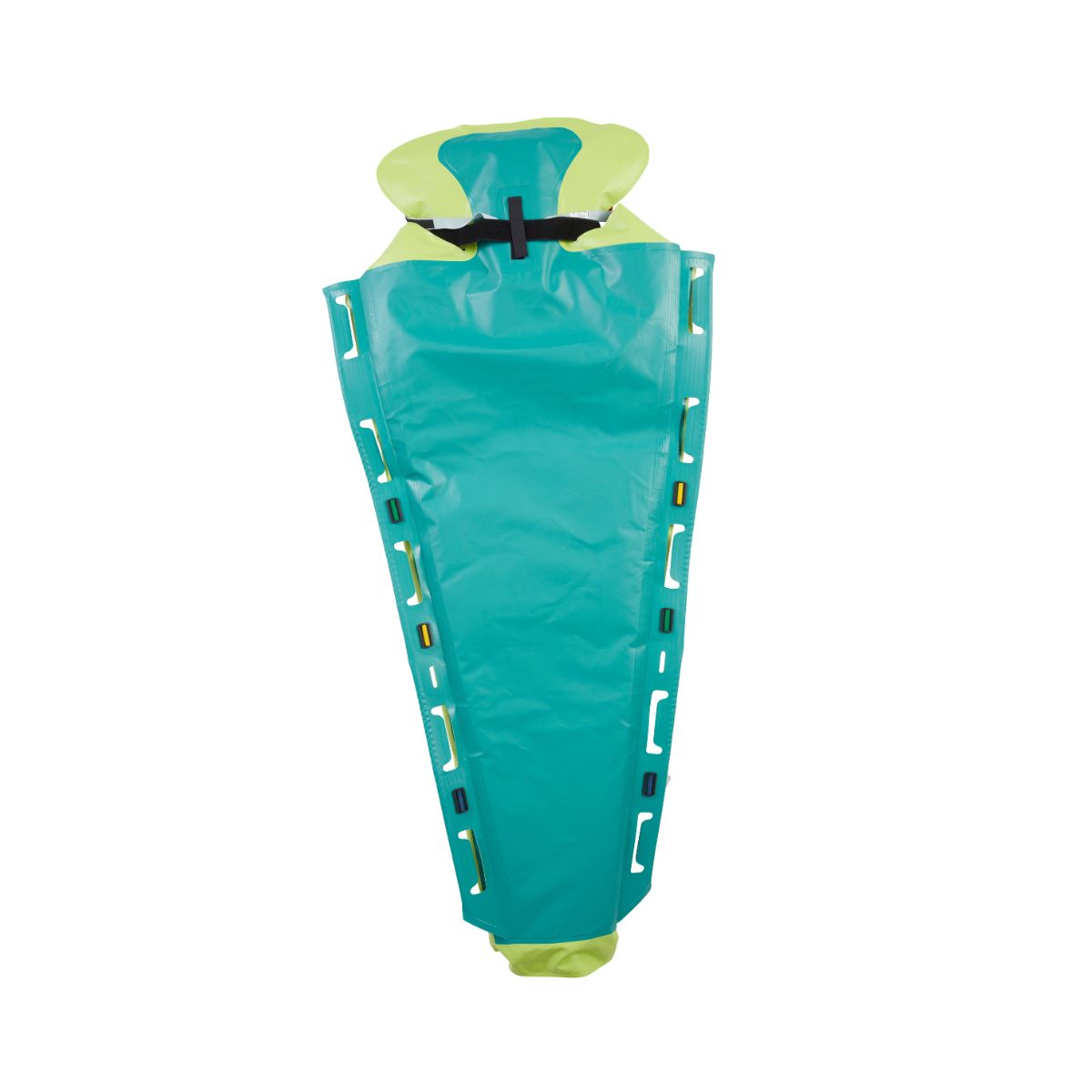

EasyFix Large Vacuum Mattress
The unique structure with reinforced wooden plate in the head, neck, and upper back section provides improved immobilization of the upper body. Combined with the X-shaped restraint system, this ensures effective and secure stabilization of the patient.
The product is approved according to European standards EN 1865 and EN 1789 and complies with MDR 2017/745 Class 1 Medical Device requirements.
Product information
- 10 ergonomic handles
- Carry capacity: 250 kg
- Reinforced head, neck, and back section with wood plate
- Improved chamber system for even granule distribution
- Lightweight and compact storage
- Warranty: 3 years
Material
- Outer material: flame-retardant PVC-coated polyester fibre
- Inner bag: polyester
- Granules: flame-retardant styropor
- Wooden board upper part: birch plywood
Technical specifications
- Length: 208 cm
- Width: 130 / 72 cm
- Thickness: 4.5 cm
- Weight without straps: 9.0 kg
- Weight with straps: 9.5 kg

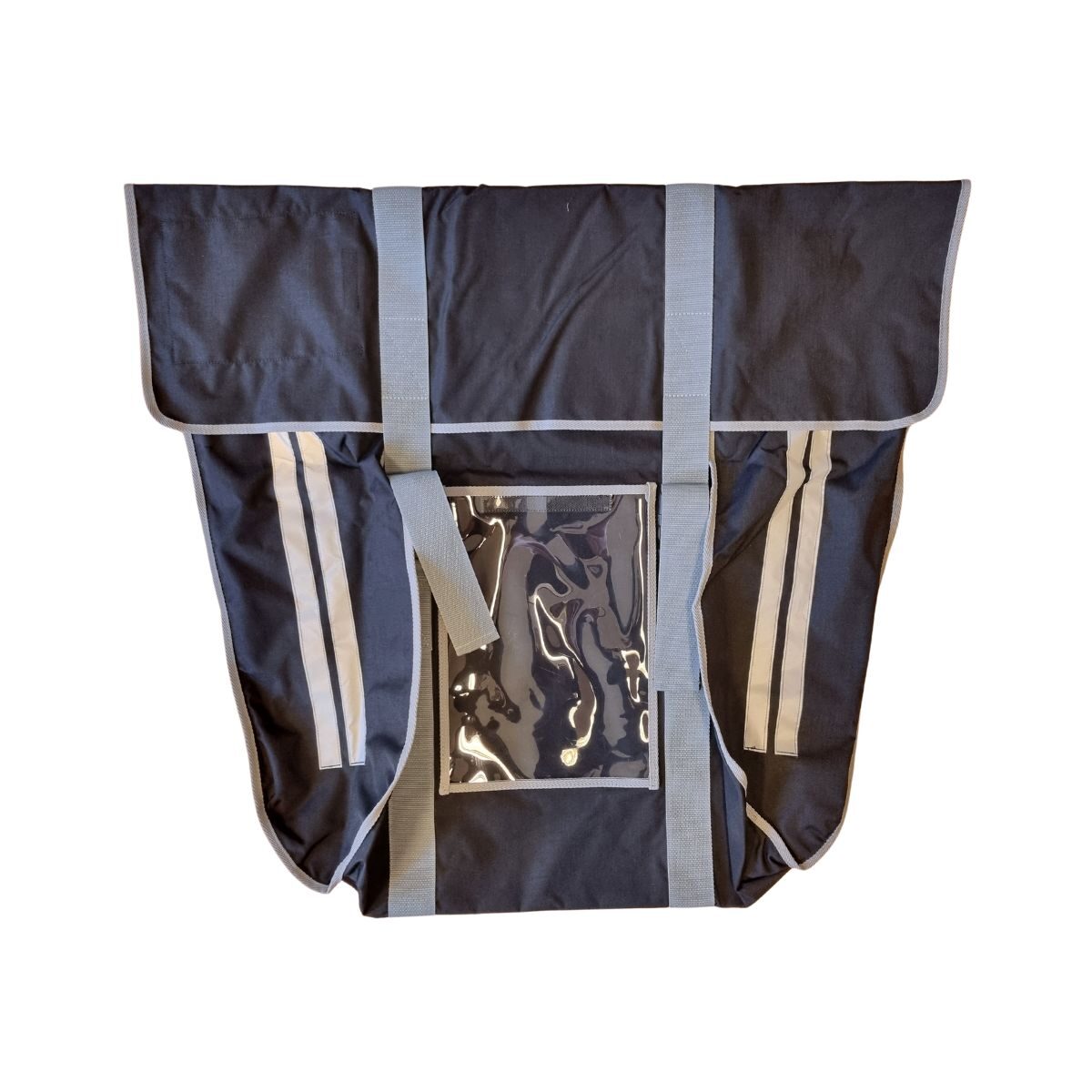

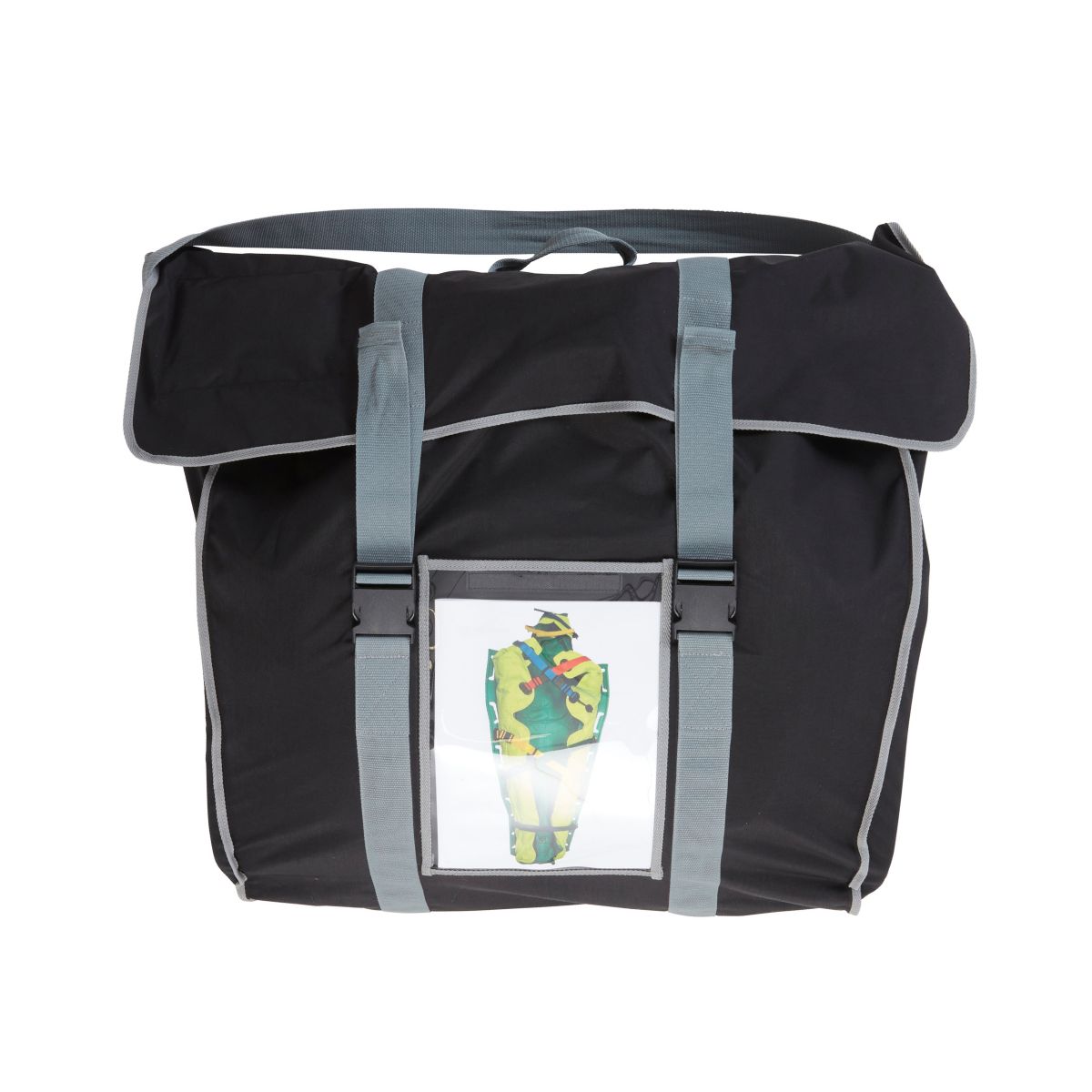

- Total weight Ready2Go: 12.5 kg (incl. foot pump, repair kit, bag)
Test specifications
- Max shrinkage length: 1%
- Max shrinkage width: 3%
- Working temperature: -30°C to +70°C
Order information
- Art no: 271501000 – Vacuum Mattress EasyFix Large
- Art no: 271501001 – EasyFix Large Ready2Go Kit
- Includes: Foot pump, repair kit, bag
Spare parts
- Art no: 12633800000 – Germa vacuum valve black
- Art no: 15000000000 – Repair kit for EasyFix vacuum mattress
Benefits
- Integrated head cushion with wooden support – stable head and neck fixation
- One-piece back panel for even spinal support and direct X-ray access without transfer
- Germa chamber technology – fast setup and even granule distribution
- Ergonomic, reinforced handles for safe lifting
- Fully welded design without seams – easy to clean hygienically
- Special valve – fits most suction devices without adapters
- Reverse airflow system – no need to manually close the valve in stressful settings
- V-shaped design – optimal immobilization of patients of all sizes
- X-shaped restraint belt system – color-coded, close to the patient, with fix locks
- Two arm positioning options – easier access for treatment
- Extra protective layer underneath – extends product life
- Maintains vacuum for over 24 hours
- PVC-coated surface – easy to clean with common disinfectants
- Foldable – saves 20% storage space compared to All In One model
